PLC Tire Stee Wire Shredder Scrap Metal Waste Steel Pre Shredder

Brand Name:	Xrido
Model Number:	1600
MOQ:	1 set
Payment Terms:	Negotiable

Detail Information

Product Description

Detail Information

Certification:

CE ISO TUV

Place Of Origin:

Henan, China

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Engine, Bearing, Gearbox, Pressure Vessel, Motor, Gear, Pump

Brand Name:

Xrido

Warranty:

1 Year

Material / Metal Processed:

Stainless Steel, Brass / Copper, Alloy, Carbon Steel, Aluminum

Key Selling Points:

Competitive Price

Product Name:

Waste Shredder Machine

Advantage:

Easy Operation High Efficiency

Machine Type:

Support Customization

Output:

Compact

Final Product:

1-10 Cm

MOTOR:

Famouse Brand

Application:

Metal Plastic Wood Bottle Film

After-sales Service Provided:

Video Technical Support

Condition:

New

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Applicable Industries:

Machinery Repair Shops, Building Material Shops, Manufacturing Plant

Delivery Time:

2-30 Working Days

Highlight:

PLC Tire Stee Wire Shredder

Tire Stee Wire Shredder

Product Description

Tire Stee Wire Shredder Wire Shredder Scrap Metal Shredder Waste Steel Pre Shredder For Scrap Metal

Products Description

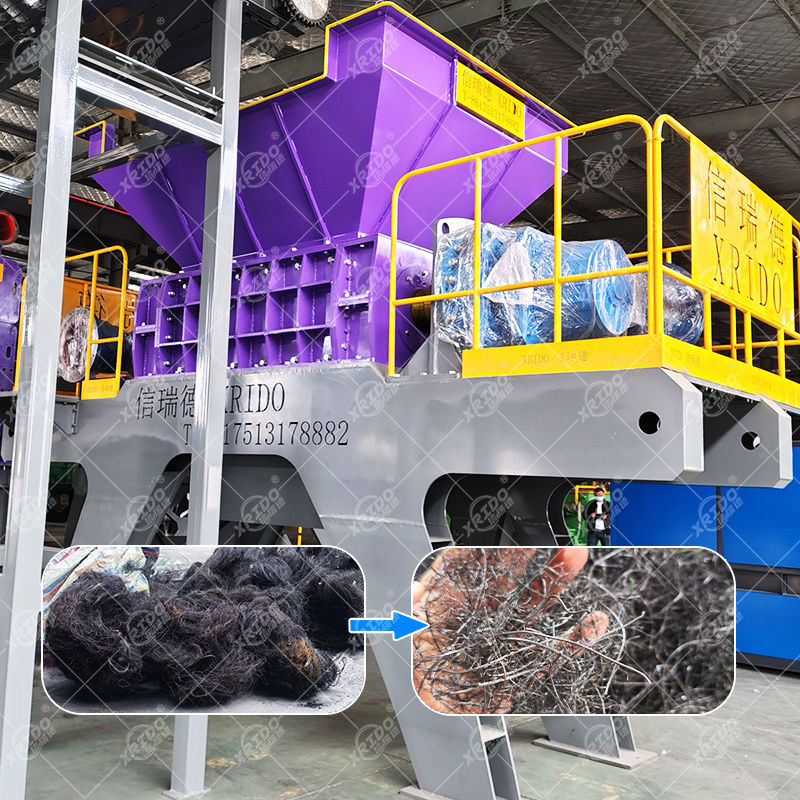

The Tire Stee Wire Shredder uses the rotation of a double shaft or a single shaft to drive the cutter to shear, tear and squeeze the material, breaking the larger-sized materials such as the tire wire clumps after cracking into smaller particles. For example, Zhongan Environmental Protection's waste tire double-shaft shredder, the power system drives the cutter shaft to drive the moving cutter rotor to rotate at a low speed, and the purpose of crushing is achieved by tearing and shearing between the cutters.

PLC Tire Stee Wire Shredder Scrap Metal Waste Steel Pre Shredder 0

Structural composition of Tire Stee Wire Shredder:
Cutter system: It is the core component of the shredder, usually made of high-strength, wear-resistant alloy steel or tungsten steel. For example, the DGT series tire-specific shredder of Wuxi Digman Environmental Protection Technology Co., Ltd. uses tungsten steel cutters, which can be used on all four sides, and the life span is more than 4-5 times that of ordinary cutters.
Transmission system: including motors, reducers, couplings, etc., to provide power for the rotation of the cutter, so that the cutter can work at a suitable speed and torque. Generally, imported reducers are used to ensure stable and efficient operation of the machine, such as Digman's single-shaft dual-drive method with large torque.
Frame and shell: used to support and fix the various parts of the shredder, and at the same time play a protective role to prevent material splashing and operator injuries. It is generally welded with high-strength steel plates and has sufficient strength and stability.

PLC Tire Stee Wire Shredder Scrap Metal Waste Steel Pre Shredder 1

Product parameters:

model	size(mm)	Shredder room(mm)	Blads(mm)	motor(k)	weight(kg)
XD-600	2800×1300×1850	600×480	200	11×2	2200
XD-800	3000×1300×1850	800×480	200	15×2	2500
XD-1000	3300×1900×2200	1000×690	300	22×2	5200
XD-1200	3600×2000×2200	1200×690	300	30×2	6400
XD-1500	4180×2100×2400	1500×850	550	55×2	9000
XD-1800	5800×2400×3300	1800×1206	550	75×2	13600
XD-2000	6400×2700×3500	2000×1490	600	90×2	20100
XD-2500	7500×3200×3800	2500×1800	600	110×2	25000
Notes: 1. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge. 2. The output of the equipment will be different depending on the type of material and the size of the discharge. 3. More information please contact us, we can custom the product on your request.

Performance characteristics of Stee Wire Shredder:
High wear resistance: Since tire steel wire has high hardness and strength, the shredder's knives and screens and other components need to have good wear resistance to ensure the service life and stable operation of the equipment.
Large torque output: In order to effectively shred tire steel wire, the shredder needs to have a large torque output to overcome the tensile strength and toughness of the steel wire.
Efficient crushing: It can quickly and effectively crush the cracked tire steel wire into smaller particles, improve production efficiency, and meet the requirements of subsequent processing technology.
High wire separation rate: Through reasonable tool design and screen configuration, the steel wire can be fully separated from other materials such as rubber and fiber, and the recovery purity of the steel wire can be improved.

PLC Tire Stee Wire Shredder Scrap Metal Waste Steel Pre Shredder 3

The tire wire shredder mainly processes waste tire-related materials containing steel wire, including:
Waste tire whole machine/fragments: tire cuts, tire rims (including high-hardness steel wire rims), sidewalls, etc. that have not been cracked.

Pyrolysis tire steel wire: The remaining steel wire and rubber mixed mass after the waste tire is thermally cracked or physically crushed, and the steel wire is in a tangled or bonded state.
Tire wire waste: separately recycled tire wire bundles, steel cords (such as steel cord fabrics in radial tires), or other rubber product waste containing steel wire (such as steel hoses, conveyor belt scraps).
Other similar materials: metal-rubber composite materials with hardness and toughness close to tire wire, such as seals and shock absorbers containing steel wire, but the tool configuration needs to be adjusted according to the equipment specifications.

PLC Tire Stee Wire Shredder Scrap Metal Waste Steel Pre Shredder 4

Tire wire shredder is also a double-shaft shredder, and is also suitable for the following materials:

√ Iron cuttings,sheet iron, sheet steel

√ Copper cuttings, sheet copper, Steel cuttings

√ Scrap iron bar, Waste steel wire

√ Waste wire, Waste steel pipe

√ Scrap metal, Scrap iron pipe

√Scrap metal, Scrap steel, Scrap iron, Scrap aluminum, Scrap radiator, Scrap copper, paint drums, diesel drums, thin iron sheets, car shells, metal briquettes, metal plate scraps etc.

PLC Tire Stee Wire Shredder Scrap Metal Waste Steel Pre Shredder 5

Other Metal Recycling Machine

Reliable and durable recycling technologies for material separation and recovery,treatment of various types of solid waste and metal scrap. Metal recycling can benefit your Enhance and economic value , Help you improve recycling eliminate landfilling of waste.

With XRIDO’s ready-to-use spare parts library , you gain peace of mind through seamless maintenance and reduced downtime.

Scrap Metal Shredding & Crushing Line

1.metal recycling line adopts two-shaft metal shredder, hammer crusher for crushing the scrap metal.

2.Use Dust collector and special structures to remove the fine particle and dust during the crushing period.

3.The scrap metal recycling equipment separates the ferrous metal by a magnetic separator.

4.(Optional)Eddy current separator is adopted by the waste recycling machine to separate the non-ferrous metal from nonmetal materials.

Core equipment:Double-shaft shredder,Hammer crusher,Magnetic separator.
