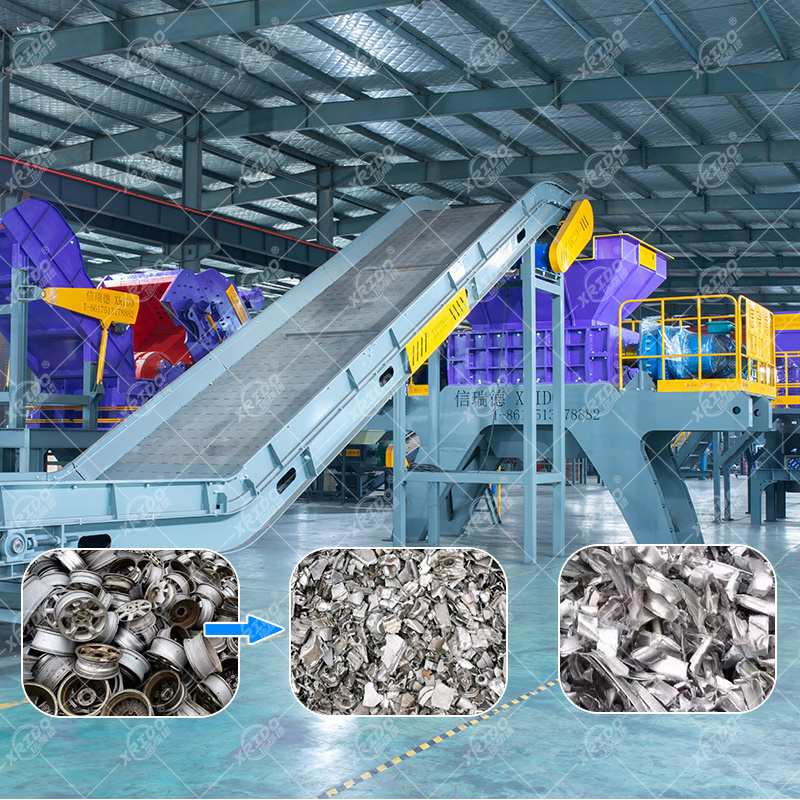

Xrido Industrial Metal Shredder for Stainless Steel Aluminum Scrap

A metal shredder is a mechanical device designed specifically for crushing and refining metal materials. It is a key piece of equipment in the solid waste treatment and resource recycling sectors. Its core function is to mechanically shred large, irregularly shaped metal scrap (such as scrap metal products, industrial scrap, scrapped automobile bodies, and metal briquettes) into uniformly sized small pieces or granules, facilitating subsequent transportation, sorting, smelting, or reprocessing.

Based on their application scenarios, metal shredders are a crucial link in the metal recycling industry chain. They are particularly suitable for processing high-hardness and high-toughness metal materials (such as steel, stainless steel, copper, and aluminum), significantly improving metal recovery efficiency and resource utilization.

Working Principle of a Metal Shredder

A metal shredder shreds metal materials through physical shearing and tearing. Its core principle can be broken down into the following steps:

1. Feeding Stage: Scrap metal to be processed is fed into the shredder's feed port via conveying equipment (such as a belt conveyor or grab bucket). The feed rate and size should be adjusted according to the equipment model to avoid overloading or material jamming.

2. Crushing Chamber: Metal material enters the crushing chamber, which consists of a rotor (shaft) and fixed blades (stationary blades). The rotor is typically equipped with multiple sets of high-strength alloy blades (such as CrMoV) and rotates at high speed (typically 50-150 rpm, depending on the model), generating powerful shear forces. The fixed blades are fixed to the inner wall of the crushing chamber, creating a shear gap with the rotor blades.

3. Shearing and Tearing: The rotating rotor blades work in conjunction with the fixed blades to apply multi-directional shear forces to the metal material (similar to a "scissor-like" cut), while simultaneously destroying the metal's internal structure through the compression and tearing action of the blades. For highly tough materials (such as stainless steel and copper pipes), the repeated bending and pulling of the cutters results in fiberized fractures.

4. Discharge Control: Crushed metal particles are discharged through a screen (the aperture is adjustable according to requirements, typically 10-100mm). Coarse particles that do not meet the required particle size remain in the crushing chamber and continue to be crushed until the required particle size is met.

Core Advantages of Metal Shredders

1. Efficient Crushing of High-Hardness/High-Toughness Metals

Traditional crushers rely on impact or extrusion crushing. For high-hardness (such as alloy steel) or high-toughness (such as stainless steel and copper pipes), they are prone to rapid tool wear, high energy consumption, and uneven discharge. Metal shredders utilize a combined shearing and tearing process to directly break down the metal's fiber structure, making them particularly suitable for handling difficult-to-crush materials. They also offer longer tool life (made of high-alloy steel and featuring a replaceable design).

2. Uniform Discharge Particle Size for Easier Post-Processing
The adjustable screen controls the discharge size (e.g., small pieces or granules of 10-50mm), resulting in far greater discharge uniformity than traditional equipment. Uniform particle size facilitates subsequent sorting (such as magnetic separation of ferrous and non-ferrous metals), baling (reducing transport volume), or direct smelting (improving furnace efficiency).

3. Low Energy Consumption and High Stability
The shredder utilizes a low-speed, high-torque design (compared to the high-speed impact of hammer shredders), resulting in lower energy consumption (power consumption per unit of processing capacity can be reduced by 20%-30%). Furthermore, low-speed operation reduces vibration and noise, resulting in higher operational stability and lower failure rates (especially suitable for continuous production scenarios).

4. Strong Adaptability and Wide Application Scenarios
It can process a variety of metal scrap, including but not limited to:
• Scrap metal products (such as used appliance casings, bicycle frames, and metal furniture);
• Industrial scrap (such as steel cutting residues and stamping waste);
• Scrapped automobile bodies and metal briquettes (requires pre-loosening);
• Non-ferrous metals (such as copper wire and aluminum extrusions).

5. Environmental Protection and Resource Recycling Value
By refining metal materials, metal recovery rates are significantly increased (reducing impurities during the smelting process), reducing the production cost of recycled metal. Furthermore, the enclosed design of the crushing process (with a dust removal system) reduces dust pollution, complying with environmental requirements.

Product parameters:
