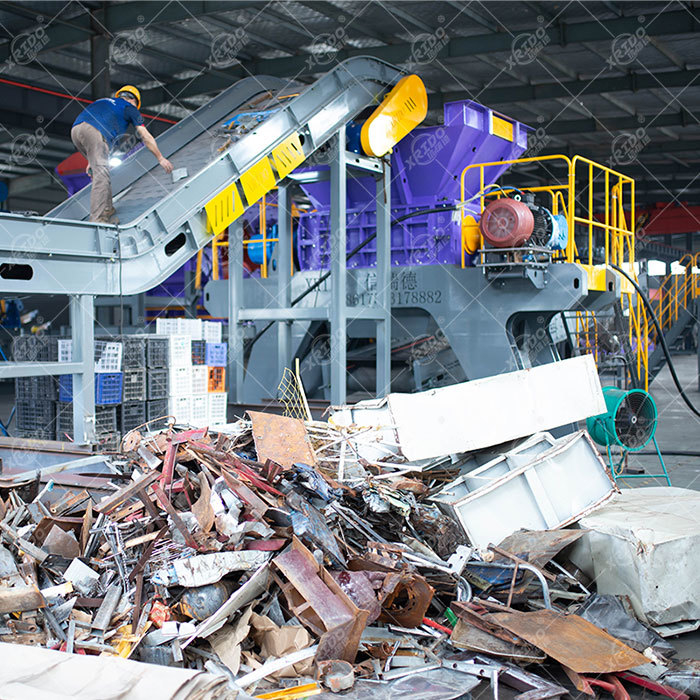

Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output

Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output

Brand Name: Xrido
Model Number: Customizable
MOQ: 1 set
Payment Terms: Negotiable
Detail Information
Certification:
CE ISO TUV
Place Of Origin:
Henan, China
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Engine, Bearing
Brand Name:
Xrido
Warranty:
1 Year
Material / Metal Processed:
Stainless Steel, Brass / Copper, Alloy, Carbon Steel, Aluminum
Key Selling Points:
Automatic
Name:
Waste Palstic Crushing
Keyword:
Double Shaft Scrap Metal Recycling
Final Product:
1-10 Cm
Advantage:
High Efficiency Low Energy Consumption
Type:
Environment-friendly
After-sales Service Provided:
Service Machinery Overseas
Delivery Time:
2-30 Working Days
Highlight:

double shaft metal shredder

,

scrap metal recycling machine

,

waste shredder with 1-10cm output

Product Description
Industrial Waste Crusher Solid Waste Crushing Machine
Product Attributes
Place of Origin Henan, China
Brand Name Xrido
Warranty 1 Year
Core Components PLC, Engine, Bearing
Material Processed Stainless Steel, Brass/Copper, Alloy, Carbon Steel, Aluminum
Key Selling Points Automatic Operation
Final Product Size 1-10 cm
Advantages High Efficiency, Low Energy Consumption
Type Environment-friendly
After-sales Service Service Machinery Overseas
Product Description

The industrial waste crusher is a specialized equipment that uses mechanical force to crush various industrial waste materials (including metal waste, plastic scraps, construction waste, and waste wood) into smaller particles. Its primary function is to achieve volume reduction and pre-treatment standardization of industrial waste, facilitating subsequent recycling, incineration power generation, or landfill disposal.

Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 0
Working Principle

The crusher utilizes the relative movement of two (or more) sets of blades (such as the reverse rotation of the blade shaft in a double-axis shredder) to apply shear force to materials, breaking or tearing them apart. This process is particularly suitable for high-toughness, large-volume materials, offering gentle crushing with minimal dust production.

Product Models and Specifications
Model Size (mm) Shredder Room (mm) Blades (mm) Motor (kW) Weight (kg)
XD-600 2800×1300×1850 600×480 200 11×2 2200
XD-800 3000×1300×1850 800×480 200 15×2 2500
XD-1000 3300×1900×2200 1000×690 300 22×2 5200
XD-1200 3600×2000×2200 1200×690 300 30×2 6400
XD-1500 4180×2100×2400 1500×850 550 55×2 9000
XD-1800 5800×2400×3300 1800×1206 550 75×2 13600
XD-2000 6400×2700×3500 2000×1490 600 90×2 20100
XD-2500 7500×3200×3800 2500×1800 600 110×2 25000
Note: 1. Blade specifications can be customized based on material type and discharge size requirements. 2. Equipment output varies depending on material type and discharge size. 3. Contact us for custom solutions tailored to your specific requirements.
Key Features
  • Significant volume reduction: Crushed material volume reduced to 1/5-1/20 of original size (e.g., waste tires reduced by 80%)
  • Resource pre-treatment: Uniform particle size facilitates material sorting and recycling processes
  • Strong adaptability: Processes materials with varying hardness, toughness, and moisture content
  • Environmental benefits: Optional dust removal and noise reduction systems minimize pollution
  • Cost optimization: Low energy consumption (5-10kWh per ton of construction waste) with long-lasting wear parts
Applicable Materials
  • High-hardness materials: Concrete blocks, granite waste, iron ore, glass fragments
  • High-toughness materials: Waste tires, plastic barrels, car shells, woven bags
  • Brittle materials: Wood, ceramics, ore, slag
  • Mixed materials: Industrial solid waste mixtures (metal, plastic, wood), pre-processed domestic waste
  • Special materials: Waste circuit boards, oily sludge, medical waste
Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 1 Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 2
One-Stop Waste Processing Solution

Our comprehensive industrial waste processing line integrates pre-crushers, fine crushers, sorters, and RDF equipment to achieve complete waste management:

  • Pre-crusher: Reduces large solid waste to 100-300mm for volume reduction
  • Fine crusher: Further processes material to uniform 30-50mm particles
  • Sorter: Separates recyclables (metals, plastics) and combustible materials
  • RDF equipment: Converts combustible waste into fuel pellets to replace fossil fuels
Waste Processing Systems
Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 3

MSW to RDF Briquette Plant

Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 4

Industrial Waste to RDF Briquette Plant

Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 5

Biomass Pellet/Briquette Plant

Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 6

Waste Tire Disposal System

Final Product Examples
Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 7 Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 8
Customer Installation Sites
Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 9 Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 10 Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 11 Xrido Double Shaft Scrap Metal Recycling Shredder 1-10cm Output 12
