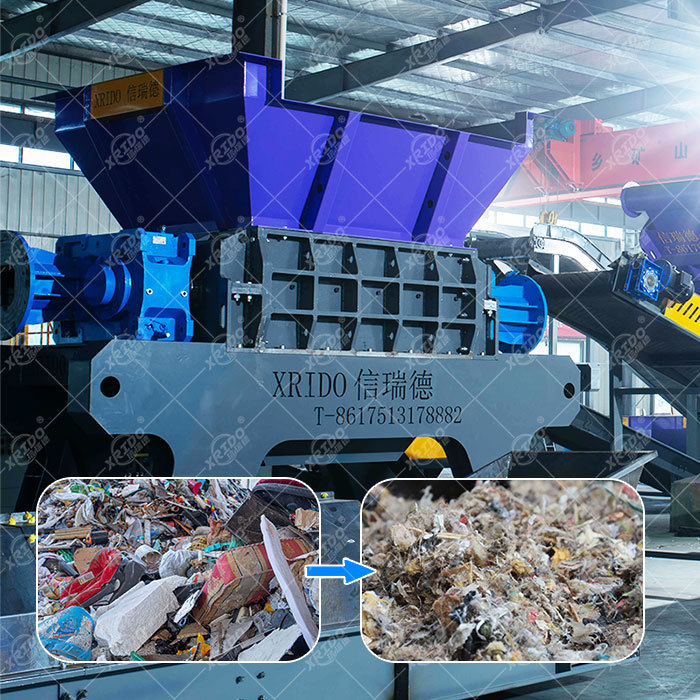

Xrido SRF Shredder for Industrial Waste Textile Leather Cloth Recycling

SRF (Solid Recovered Fuel) is an alternative fuel made from waste after pretreatment, composed of renewable resources such as municipal solid waste, industrial waste and agricultural waste. Through sorting, crushing, drying and molding processes, these wastes are transformed into high calorific value solid fuel for power generation or heating.

The SRF shredder processes solid waste based on low speed, high torque rotary shear principle. Materials enter the shredding box where blades tear them into small pieces, which are then discharged through screen holes.

• Waste plastics, electronic waste, urban waste
• Domestic waste, kitchen waste, medical waste
• Various types of wood and large-diameter PE plastic pipes
• Bales of plastic film, large piles of plastic sheets

• Efficient Volume Reduction: Up to 70% reduction in transportation and landfill costs
• Resource Adaptation: Improved sorting of recyclable components like metals and plastics
• Intelligent Environmental Protection: Integrated monitoring systems ensure stable operation and reduced emissions

• Wear-resistant imported blades for high energy efficiency and reliability
• Large crushing force with high output and low noise
• Durable construction for harsh environments

• Leather/textile waste: Clothing factory scraps, waste fabrics
• Papermaking light residue: Requires magnetic separation for metal removal
• Wood product waste: High calorific value with few combustion pollutants

• Combustible light materials: Waste plastics, paper, fabrics
• Packaging waste: Plastic bottles, foam requiring crushing

• Straw/rice husk: Requires compression to increase density
• Garden waste: Needs drying to reduce moisture impact

• Waste oil sludge: Requires dehydration
• Mixed industrial waste: Needs fine crushing and sorting

Collect industrial waste and sort to remove non-flammable impurities. Initial metal separation using magnetic equipment.

Primary crushing to 5-10cm fragments with moisture control. Fine sorting using drum screens and magnetic equipment.

Rotary dryer at 180-220°C to reduce moisture below 12%. Secondary crushing to 1-3cm particles with metal detection.

Proportional mixing in double-shaft mixer. High-pressure forming at 80-120MPa with cooling for 25+ minutes.
