Brand Name: | Xrido |
Model Number: | Customizable |
MOQ: | 1 set |
Payment Terms: | Negotiable |
Place of Origin | Henan, China |
Video Outgoing-Inspection | Provided |
Machinery Test Report | Provided |
Core Components | PLC, Engine, Bearing |
Brand Name | Xrido |
Warranty | 1 Year |
Material / Metal Processed | Stainless Steel, Brass / Copper, Alloy, Carbon Steel, Aluminum |
Key Selling Points | Automatic |
Final Product | 1-10 Cm |
Advantage | High Efficiency Low Energy Consumption |
Type | Environment-friendly |
After-sales Service | Service Machinery Overseas |

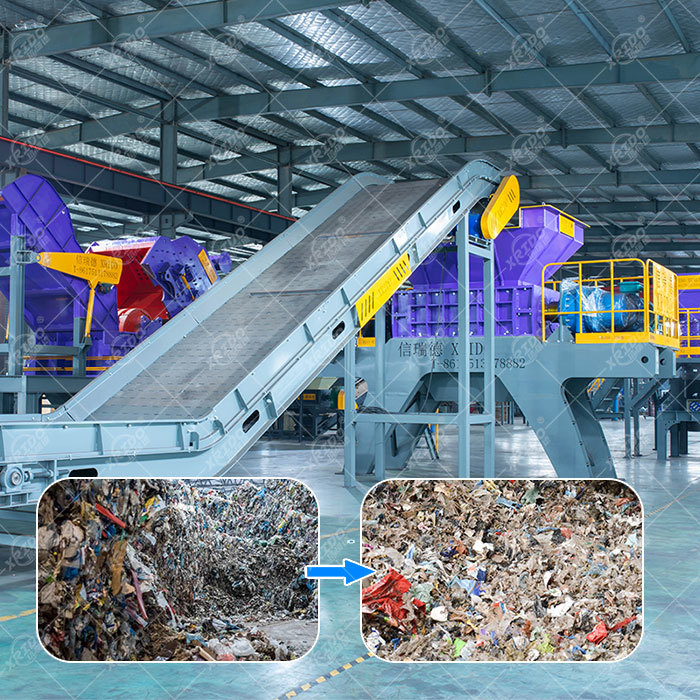

A garbage crusher is a device that uses mechanical force to crush various types of garbage (including domestic garbage, industrial solid waste, medical waste, etc.) into smaller particles, with the purpose of reducing the amount of garbage, recycling it or disposing it harmlessly afterwards.
Model | Size (mm) | Shredder Room (mm) | Blades (mm) | Motor (k) | Weight (kg) |
---|---|---|---|---|---|
XD-600 | 2800×1300×1850 | 600×480 | 200 | 11×2 | 2200 |
XD-800 | 3000×1300×1850 | 800×480 | 200 | 15×2 | 2500 |
XD-1000 | 3300×1900×2200 | 1000×690 | 300 | 22×2 | 5200 |
XD-1200 | 3600×2000×2200 | 1200×690 | 300 | 30×2 | 6400 |
XD-1500 | 4180×2100×2400 | 1500×850 | 550 | 55×2 | 9000 |
XD-1800 | 5800×2400×3300 | 1800×1206 | 550 | 75×2 | 13600 |
XD-2000 | 6400×2700×3500 | 2000×1490 | 600 | 90×2 | 20100 |
XD-2500 | 7500×3200×3800 | 2500×1800 | 600 | 110×2 | 25000 |
When the two shafts rotate, the staggered blades form a "bite" effect, and the garbage (such as large furniture, metal barrels) entering the shredding cavity is rolled into the crushing area, relying on the main shaft torque to overcome the tensile strength of the material.
The relative movement of the two sets of blades generates shearing force, and the material is squeezed and torn at the same time. Tough materials (such as rubber) are torn and hard materials (such as iron sheets) are sheared.
The screen at the bottom of the crushing chamber sets the aperture (such as 30mm) according to the demand, and qualified particles are discharged through the screen. Unqualified materials continue to circulate and crush in the cavity until they meet the particle size requirements.
The volume of garbage is reduced by 50%-80% after crushing, reducing transportation costs (for example, 1 truck of garbage can be compressed into half a truck after crushing).
The crushed materials are easy to sort and recycle: metal garbage can be separated into iron and aluminum by magnetic separation after crushing; plastic can be directly granulated and regenerated after crushing.
It can handle many types of materials such as domestic garbage (furniture, kitchen waste), industrial solid waste (tires, electronic waste), and construction waste (concrete blocks).
The closed cavity reduces dust (emission ≤30mg/m³) and noise (≤85 decibels); the overload protection system (automatic reversal when encountering hard objects) avoids equipment damage.
The PLC control system supports automatic start and stop, fault warning, and some equipment can be connected to the Internet of Things platform to monitor the operating status and energy consumption data in real time.
The company's main products include double-axis shredders, metal crushers, solid waste disposal equipment and renewable resource equipment to meet the needs of different customers. By providing a one-stop solution, XRIDO Group can helps customers solve various solid waste treatment problems.
The solid waste disposal system can be customized according to the actual materials.
Garbage crushers are key equipment in modern solid waste treatment systems. Through different structural designs, they can achieve efficient crushing of various types of garbage, laying the foundation for subsequent reduction, resource utilization and harmless treatment. In actual applications, it is necessary to comprehensively select models based on material characteristics, processing scale and environmental protection standards. If necessary, a process route combining multiple crushers (such as "coarse crushing + fine crushing") can be adopted to achieve the best treatment effect.
