Xrido Double Shaft Waste Shredder for Metal Recycling 1-10cm Output

Brand Name:	Xrido
Model Number:	Customizable
MOQ:	1 set
Payment Terms:	Negotiable

Detail Information

Product Description

Detail Information

Certification:

CE ISO TUV

Place Of Origin:

Henan, China

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Engine, Bearing

Brand Name:

Xrido

Warranty:

1 Year

Material / Metal Processed:

Stainless Steel, Brass / Copper, Alloy, Carbon Steel, Aluminum

Key Selling Points:

Automatic

Name:

Waste Palstic Crushing

Keyword:

Double Shaft Scrap Metal Recycling

Final Product:

1-10 Cm

Advantage:

High Efficiency Low Energy Consumption

Type:

Environment-friendly

After-sales Service Provided:

Service Machinery Overseas

Delivery Time:

2-30 Working Days

Highlight:

double shaft waste shredder

metal recycling shredder machine

waste shredder 1-10cm output

Product Description

Garbage Pre Crusher Machine - Solid Waste Recycling Crushing Machine

Double Shaft Shredder for Metal Crushing

Place of Origin	Henan, China
Brand Name	Xrido
Warranty	1 Year
Core Components	PLC, Engine, Bearing
Materials Processed	Stainless Steel, Brass/Copper, Alloy, Carbon Steel, Aluminum
Final Product Size	1-10 cm
Key Advantages	High Efficiency, Low Energy Consumption
Type	Environment-friendly
After-sales Service	Service Machinery Overseas

Product Description

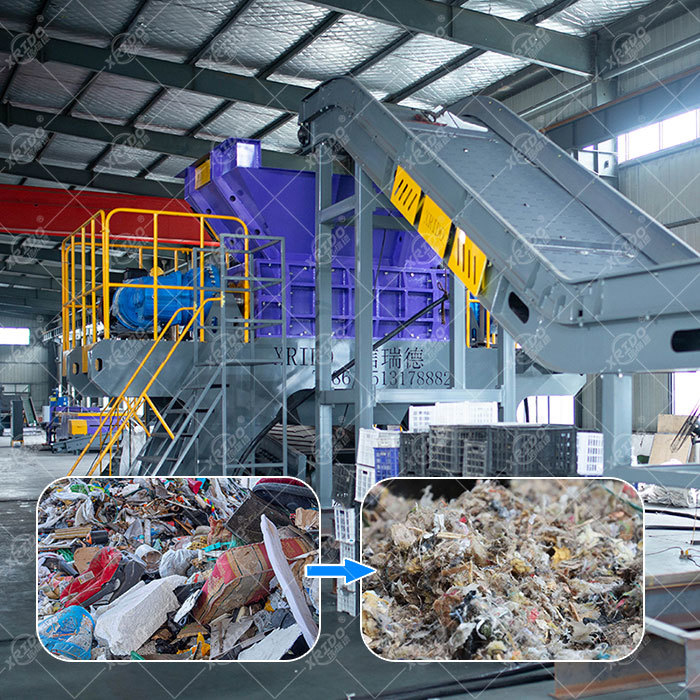

The garbage pre-crusher is an essential equipment in solid waste disposal production lines. It serves as coarse crushing equipment to initially process large, irregularly shaped waste into smaller blocks or flakes, preparing materials for subsequent sorting and fine crushing processes while ensuring smooth operation of downstream equipment.

Working Principle

The garbage pre-crusher operates on principles of shearing, squeezing, and tearing. In the common double-shaft configuration, staggered blades on two rotating shafts generate shear forces while simultaneously squeezing and tearing materials, reducing waste to smaller particles.

Product Models and Specifications

Model	Size (mm)	Shredder Room (mm)	Blades (mm)	Motor (kW)	Weight (kg)
XD-600	2800×1300×1850	600×480	200	11×2	2200
XD-800	3000×1300×1850	800×480	200	15×2	2500
XD-1000	3300×1900×2200	1000×690	300	22×2	5200
XD-1200	3600×2000×2200	1200×690	300	30×2	6400
XD-1500	4180×2100×2400	1500×850	550	55×2	9000
XD-1800	5800×2400×3300	1800×1206	550	75×2	13600
XD-2000	6400×2700×3500	2000×1490	600	90×2	20100
XD-2500	7500×3200×3800	2500×1800	600	110×2	25000

Notes: Blade configuration and output vary by material type and discharge size. Custom configurations available upon request.

Key Features

Strong Processing Capacity: Large feed inlet accommodates high-volume materials and adapts to mixed waste components with varying hardness and toughness.
Low Speed, High Torque: Hydraulic or high-power motor drive provides crushing force while minimizing wear and extending equipment lifespan.
Foreign Object Protection: Automatic ejection system for non-crushable materials prevents damage and improves screening accuracy.
Process Optimization: Uniform particle size output enhances efficiency of downstream sorting and processing operations.

Detail Images

Applicable Materials

Household Waste

Large items (sofas, mattresses, refrigerator shells), kitchen waste (bones, coconut shells), packaging materials (cartons, plastic bottles)

Industrial Solid Waste

Plastic (pallets, barrels), rubber (tires), metal (cans, sheet metal)

Construction Waste

Concrete blocks, bricks, wood scraps

Specialty Waste

Medical waste packaging, lithium batteries (with explosion-proof design)

Agricultural Waste

Straw, branches, livestock bedding materials

Integrated Waste Processing Solution

Our complete solid waste disposal system combines pre-crushers, fine crushers, sorters, and RDF equipment to achieve waste reduction, harmless treatment, and resource utilization through a coordinated process of crushing, sorting, and material recovery.

System Advantages

Volume Reduction: Combined crushing processes achieve over 80% volume reduction
High Recovery Rates: 85%+ recovery for recyclables, 30-40% RDF fuel conversion
Environmental Benefits: Reduced landfill needs, lower emissions versus coal, integrated pollution control

Final Product Examples

Customer Installations
