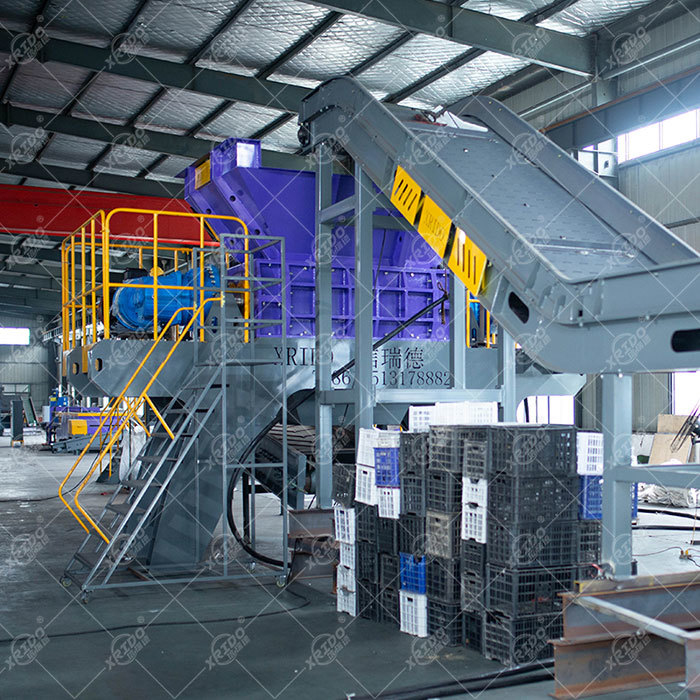

Xrido AT-TS 55kW Tire Shredder for Recycling 2-3 Tons/Hour

Tire shredder is a mechanical device specially used for processing waste tires. It uses mechanical force to break down the whole tire into smaller rubber blocks or strips for subsequent resource utilization. Tire shredder relies on the mutual engagement and low-speed rotation (5-13 rpm) of dual-axis or multi-axis cutters to break down tires through the combined action of tearing and shearing.

The tire shredder is equipped with high-hardness alloy blades, hydraulic forced feeding system and intelligent control module to ensure processing efficiency and safety.

Solve the pollution problem of waste tire accumulation. The shredded rubber blocks can be used as recycled raw materials for runway paving, cracking and refining, etc., to promote the development of circular economy.

The tire recycling line can effectively realize the automatic separation of materials such as rubber, steel wire, nylon fiber, etc. The whole line adopts a PLC control system, which is easy to operate and maintain, with low energy consumption and long service life.

Notes: 1. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge. 2. The output of the equipment will be different depending on the type of material and the size of the discharge. 3. More information please contact us, we can custom the product on your request.

• Tire shredder: Adopting dual-axis or multi-axis alloy cutters for low-speed shearing (5-13 rpm), it can directly process whole tires containing steel wires (diameter ≤2000mm) and produce 50-150mm rubber strips. The modular cutter disc design supports rapid replacement, and the hydraulic forced feeding system ensures processing efficiency.
• Steel wire separator: Through magnetic separation or vibration screening technology, the shredded rubber is separated from the steel wire, and the steel wire recovery rate can reach more than 98%.
• Rubber crushing/grinding unit: Secondary processing equipment, further crushing the rubber blocks into 1-20mm particles, and some models are equipped with freezing technology to increase the fine powder output rate.

It can be used to tear up solid materials such as plastic, rubber, fiber, tire, cables, etc. which are hard to break, such as: nozzle material, rubber head, PET bottle, cardboard, circuit board, wood, plastic barrel, etc. You can select the corresponding model according to the material size and handling capacity.
