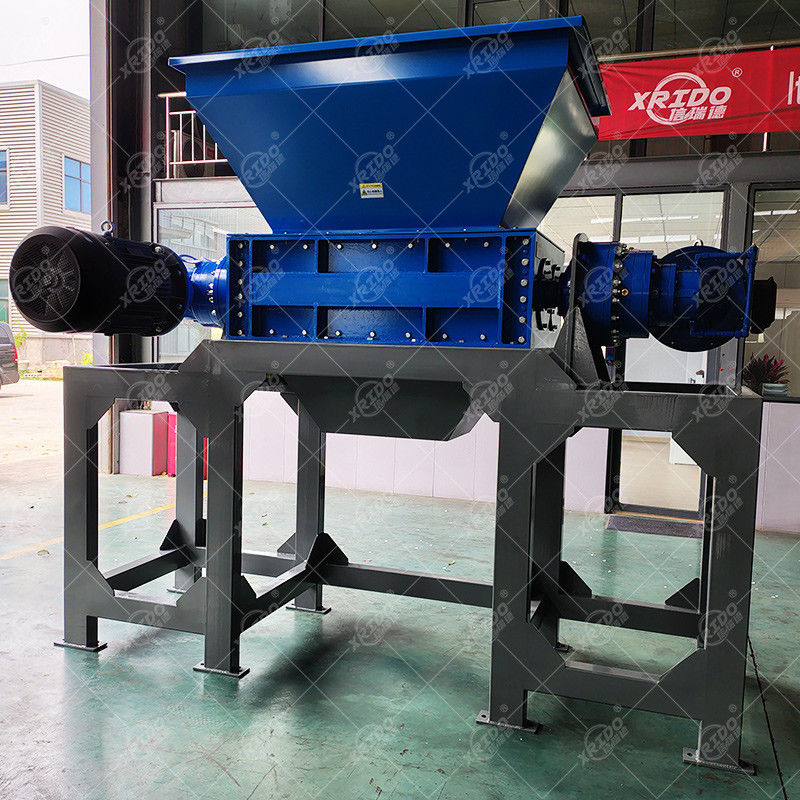

Xrido AT-TS 55kW Tire Shredder 2-3T Capacity for Recycling

Brand Name:	Xrido
Model Number:	Customizable
MOQ:	1 set

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Place Of Origin:

Henan, China

Brand Name:

Xrido

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Engine, Bearing, Gearbox, Motor, Gear

Model Number:

AT-TS

Voltage:

380V, 110V, 240V, 220V, 380V/50HZ Or Customized

Dimension(l*w*h):

Customized

Warranty:

1 Year

Key Selling Points:

High Productivity

Weight (kg):

3000

Power:

Product Name:

Waste Crumb Rubber Tyre Shredder Recycle Machinery

Quality:

High Level

Usage:

Tyre Recycling

Advantage:

Easy Operation High Efficiency

Shredder Blade Material:

Cr12Mov

Capacity:

2-3tons

End Product:

Rubber Particle

Application:

Recycle Waste Tires

Tire Type:

Truck Tires, Car Tires, Bicycle Tires, Etc.

Delivery Time:

5-30 word days

Highlight:

full automatic tire shredder

industrial car tire shredder

2T-3T tire recycling machine

Product Description

Full Automatic Industrial Tyre Shredder 2T-3T Car Tyre Shredder Recycling

Product Specifications

Attribute	Value
Place of Origin	Henan, China
Brand Name	Xrido
Model Number	AT-TS
Voltage	380V, 110V, 240V, 220V, 380V/50HZ or customized
Power	55 kW
Capacity	2-3 tons
Weight	3000 kg
Shredder Blade Material	Cr12Mov
Warranty	1 Year
Tire Type	Truck tires, car tires, bicycle tires, etc.
End Product	Rubber Particle

Product Description

The Full Automatic Industrial Tyre Shredder is a high-efficiency recycling machine designed for processing waste tires into reusable rubber particles. This complete tire recycling system features automatic material separation and PLC control for easy operation.

The tire recycling line effectively separates rubber, steel wire, and nylon fiber automatically. The entire system features PLC control for easy operation and maintenance, with low energy consumption and long service life.

Technical Specifications

Model	Motor Power (kW)	Blade Size (mm)	Shredder Room Size (mm)	Size (mm)
XD-600	11×2	200	600×480	2800×1300×1850
XD-800	15×2	200	800×480	3000×1300×1850
XD-1000	22×2	300	1000×690	3300×1900×2200
XD-1200	30×2	300	1200×690	3600×2000×2200
XD-1500	55×2	550	1500×850	4180×2100×2400
XD-1800	75×2	550	1800×1206	5800×2400×3300
XD-2000	90×2	600	2000×1490	6400×2700×3500
XD-2500	110×2	600	2500×1800	7500×3200×3800

Key Features

Processes whole tires directly without pre-breaking or steel ring removal
Converts entire tires into 1-7mm granules in a continuous production process
Configurable output from 200 kg/h to 5000 kg/h based on requirements
Dual-axis alloy cutters for low-speed shearing (5-13 rpm)
Modular cutter disc design for rapid replacement
Hydraulic forced feeding system ensures processing efficiency
Steel wire recovery rate exceeds 98%

System Components

Tire Shredder: Uses dual-axis or multi-axis alloy cutters to process whole tires (diameter ≤2000mm) into 50-150mm rubber strips.

Steel Wire Separator: Employs magnetic separation or vibration screening technology to separate steel wire from rubber.

Rubber Crushing/Grinding Unit: Further processes rubber blocks into 1-20mm particles, with optional freezing technology for fine powder production.
