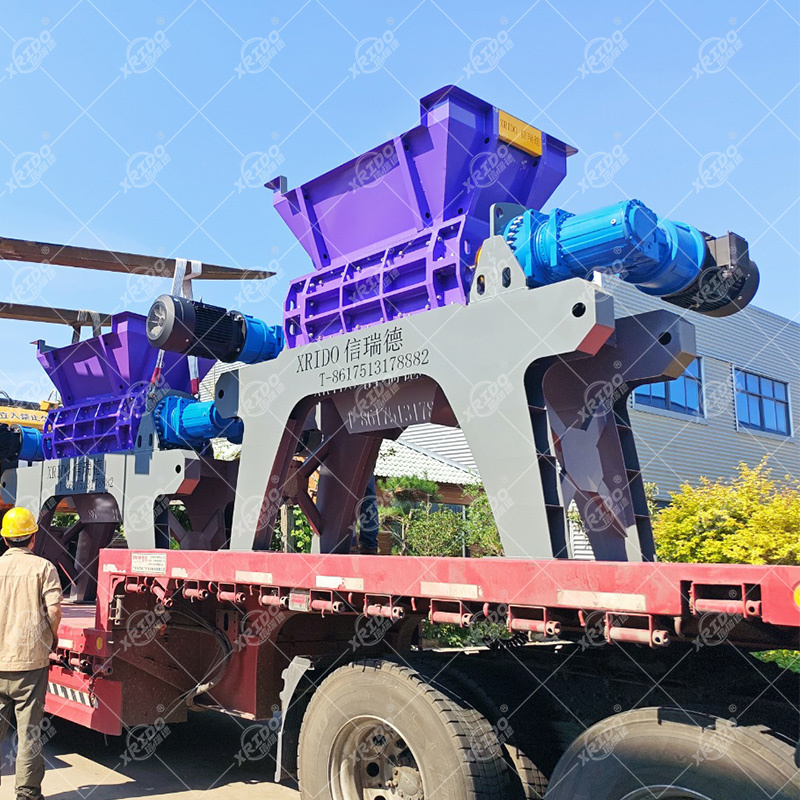

55kW Tire Shredder Machine for Recycling 2-3 Tons of Waste Tires

The tire shredder adopts dual-axis drive technology, and the two-axis knives are staggered and interlocked. The tire is decomposed by rolling shearing, which reduces jamming and improves crushing stability.

The moving knife and fixed knife of the tire shredder are made of SKD11 material imported from Japan, with a hardness of HRC60° or above, supporting two-sided knife replacement and repeated repairs, and a service life of more than 1,000 tons of processing capacity.

The tire recycling system efficiently achieves automated segregation of components like rubber, steel cords, and nylon fibers through its PLC-controlled operation. Featuring user-friendly maintenance interfaces and energy-efficient performance, this production line ensures continuous processing capabilities with enhanced durability for industrial applications.

Notes: 1. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge. 2. The output of the equipment will be different depending on the type of material and the size of the discharge. 3. More information please contact us, we can custom the product on your request.

• The whole tire is directly put in, no need to pre-break and pull the steel ring
• From the entire tire to 1-7 mm granules, the entire process of production packaging, no secondary handling intermediate links
• According to the customer's output requirements configuration equipment, 200 kg/h-5000 kg/h, a wide range of options

• Double-axis collaborative shearing system: Adopting double-axis drive technology, the two-axis cutters are staggered and interlocked, and the tires are decomposed by rolling shearing to reduce jamming and improve crushing stability.
• High-quality blades: Made of SKD11 material imported from Japan, with a hardness of HRC60° or above, supporting two-sided knife replacement and repeated repairs.
• Modular knife disc and forced feeding: Facilitates quick replacement of knives, equipped with a hydraulic forced feeding system for continuous and efficient feeding.

• Can process steel wire tires (including mouth wire) with a diameter of ≤2000mm, without pre-cutting or removing steel wire
• Processing capacity reaches 200-10000kg/h
• Double-axis collaboration disperses the single-axis pressure, reduces energy consumption and extends equipment life

• Low-speed high-torque operation: Speed only 5-13 rpm with ultra-large torque design for low noise (≤75 dB) and low dust emission.
• Intelligent control: Integrated PLC system supports automatic start and stop, overload protection and variable frequency speed regulation (5-60Hz).

• Equipped with wind and water cooling system and micro-dust removal device
• Knife shaft adopts detachable design, wear-resistant blade can be repaired multiple times
• Significantly reduces long-term maintenance costs
